Continental Series - ESR 20 foot, External Halyard Flagpole. Many options available.

The Continental Series from Concord American Flagpole combines a heavy-duty aluminum flagpole with the highest quality hardware available to the industry today. These flagpoles meet the most stringent architectural standards and are certain to enhance the landscape of any business or industrial property. This 20', single section, flagpole is designed to fly a 4x6 flag and is available in several combinations of Shaft Thickness and Butt Diameters to suit all kinds of wind conditions. Windspeed maximums are listed in "Butt Diameter and Shaft Thickness" Option at the Right. Windage figures are in MPH (Miles Per Hour), Flagged/Unflagged with the recommended size flag.

Standard Features Include:

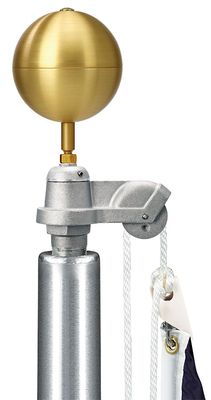

• Patented, Heavy-Duty Gold Anodized Aluminum Ball
• Cast Aluminum Revolving Truck with Dual Stainless Steel Bearing Assemblies, Aluminum Pulley and Aluminum Spindle.
• Complete External Halyard Assembly - Rope Halyard - 5/16" #10 polyester - Two (2) Solid Brass Swivel Flagsnaps - Two (2) Neoprene Flagsnap Covers.
• 9" Cast Aluminum Cleat
• Spun Aluminum FC-11 Flash Collar
• Galvanized 16-Gauge Corrugated Steel Ground Sleeve with Steel Grounding Spike.

Optional Upgrades:

• Color and Finish

Satin - Standard -	Clear Anodized	Black Anodized	Dark Bronze Anodized
Bronzetone Powder Coat	Black Powder Coat	White Powder Coat	Clear Powder Coat

• Shaft Thickness

• Heavy-Duty Truck with Dual SEALED Bearings for 4"-8" Butt Diameter Flagpoles

External Halyard Heavy Duty Single Revolving Truck. Heavyweight Cast Aluminum Body and Components Single Aluminum Pulley on a Stainless Steel Axle. Attaches with three (3) Stainless Steel Set Screws SEALED Upper and Lower Stainless Steel Ball Bearing Assemblies. 1-1/4" NPT Spindle 1/2"- 13NC Top Drilling (5/8"-13NC Available) Recommended Halyard Diameter - 3/8" Provided in Same Finish and Color as Your Flagpole.
8" Diameter Ball/Truck Replaces Standard Truck and Ball Combination Cast Aluminum Construction Goldtone Powder Coated Finish Aluminum Pulley on Stainless Steel Axle SEALED Upper and Lower Stainless Steel Ball Bearing Assemblies. 1-1/4" NPT Spindle Factory Attached Eagles Available - Contact us for size and pricing options.

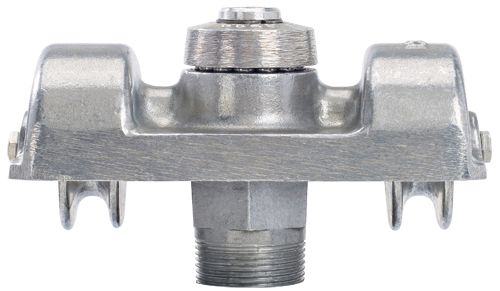

Double Revolving Truck Cast Aluminum Body Double Aluminum Pulleys on Stainless Steel Axles Upper and Lower Stainless Steel Ball Bearing Assemblies. Non-Fouling Design 1-1/4" NPT Spindle 1/2" - 13NC Top Drilling (5/8" 11NC Availavble) Recommender Halyard Diameter - 5/16" Includes Extra Cleat, Halyard and Flagsnaps.

• Cleat Cover Box

Cleat Cover Boxes, also known as Halyard Cover Assemblies or Halyard Security Kits Provide Tamper Resistant Security for External Halyard Flagpoles.	Cleat Cover Box with Padlock	Cleat Cover Box with Cylinder Lock
Available in Both Cylinder Lock and Padlock designs containing a sanded finish that is complementary to the Flagpole Color and Finish. These Boxes are Constructed of Heavy Cast Aluminum with Stainless Steel Hinges. Keys are Included for the Cylinder Lock Models (Padlock by Others)
Five foot tall Halyard cover Channel (not shown) Keeps your Halyard Lines Safe and Secure inside a heavy Cast Aluminum Channel. These Channels Extend up and Out of Reach on The Flagpole.

• Collar Options

Our Offering of Heavy-Duty Cast Aluminum Collars Provides Project Owners the Strongest and Most Durable Collar Offered in the Industry Today. Cast from Aluminum Alloy, These 1/4" Thick Cast Collars are Designed to Withstand the Harshest Environments.

• Hinge Base Mount Option

Hinge Base Mount to be used on One Piece External Halyard Flagpoles up to 25' only. 4" and 5" Butt Diameters

Shoe Base Mounting. All 20' to 80' Concord Flagpoles listed on our website with Butt Diameters of 4" or more can be provided with a shoe base option in lieu of the Standard Foundation Sleeve and Lightning Ground Spike. Shoe Bases are welded to the flagpole shaft and heat treated to a T-6 Temper at the factory prior to shipping. For more information and pictuers go here.
