Continental Series - ESR 45 foot, External Halyard Flagpole. Many options available.
$6,751.00
In stock
Product Details
UPC:
None Available
Brand:
Concord American
The Continental Series from Concord American Flagpole combines a heavy-duty aluminum flagpole with the highest quality hardware available to the industry today. These flagpoles meet the most stringent architectural standards and are certain to enhance the landscape of any business or industrial property. This 45' flagpole has a 2 piece shaft and is only available with a 8" Butt Diameter and .188" Shaft Thickness. The top diameter is 3-1/2" It is designed to fly a 8'x12' flag.
Standard Features Include:

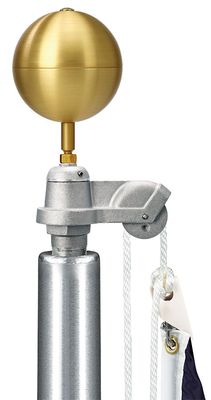

- Patented, Heavy-Duty Gold Anodized Aluminum Ball
- Cast Aluminum Revolving Truck with Dual Stainless Steel Bearing Assemblies, Aluminum Pulley and Aluminum Spindle.
- Complete External Halyard Assembly - Rope Halyard - 5/16" #10 polyester - Two (2) Solid Brass Swivel Flagsnaps - Two (2) Neoprene Flagsnap Covers.
- 9" Cast Aluminum Cleat
- Spun Aluminum FC-11 Flash Collar
- Galvanized 16-Gauge Corrugated Steel Ground Sleeve with Steel Grounding Spike.
Optional Upgrades:
- Color and Finish
Satin- Standard - |
ClearAnodized |
BlackAnodized |
Dark BronzeAnodized |
 |
 |
 |
 |
Bronzetone Powder Coat |
Black Powder Coat |
White Powder Coat |
Clear Powder Coat |
 |
 |
 |
 |
- Shaft Thickness
| The standard thickness of this flagpole is .156 inches (5/32") providing 87 MPH maximum wind speed when flagged with a 6'x10' flag and 122 MPH with no flag. There are several options to upgrade (above right)all the way to a shaft that is .188 inches (188/1000") providing 122 MPH maximum wind speed when flagged with a 8'x12' flag and 177 MPH with no flag. The ANSI minimum requirement throughout the lower 48 states is 90 MPH. Some costal and mountain areas are much higher, particularly on the East and Gulf Coasts. If you are uncertain of your area, take a look at the specific requirements here. Or you can call us at 530-221-4000. |
- Truck Options
External Halyard Heavy Duty Single Revolving Truck.
|
 |
8" Diameter Ball/Truck
|
 |
Double Revolving Truck
|
 |
- Cleat Cover Box
| Cleat Cover Boxes, also known as Halyard Cover Assemblies or Halyard Security Kits Provide Tamper Resistant Security for External Halyard Flagpoles. | Cleat Cover Box with Padlock |
Cleat Cover Box with Cylinder Lock |
| Available in Both Cylinder Lock and Padlock designs containing a sanded finish that is complementary to the Flagpole Color and Finish. These Boxes are Constructed of Heavy Cast Aluminum with Stainless Steel Hinges. Keys are Included for the Cylinder Lock Models (Padlock by Others) |
 |
 |
| Five foot tall Halyard cover Channel (not shown) Keeps your Halyard Lines Safe and Secure inside a heavy Cast Aluminum Channel. These Channels Extend up and Out of Reach on The Flagpole. |  |
 |
- Collar Options
Our Offering of Heavy-Duty Cast Aluminum Collars Provides Project Owners the Strongest and Most Durable Collar Offered in the Industry Today. Cast from Aluminum Alloy, These 1/4" Thick Cast Collars are Designed to Withstand the Harshest Environments. |
 |
- Mounting Options
| Shoe Bsae Option All 20' to 80' Concord Flagpoles listed on our website with Butt Diameters of 4" or more can be provided with a shoe base option in lieu of the Standard Foundation Sleeve and Lightning Ground Spike. Shoe Bases are welded to the flagpole shaft and heat treated to a T-6 Temper at the factory prior to shipping. For more information and pictuers go here. |
 |
