Estate Series - ESS 20 foot, External Halyard Flagpole. Many options available.

The Estate Series from Concord American Flagpole provides commercial grade flagpoles that are a perfect fit for budget minded projects. Manufactured to the same quality standards as their Continental Sreies, this pole is ideal for residential homes, small businesses and commercial complexes. This flagpole is a single section, cone tapered aluminum shaft with varrying bottom diameters of 3, 4 or 5 inches and a top diameter of 2 or 3 inches (Selectable in options at the upper right) This pole is designed to fly a 4'x6' flag.

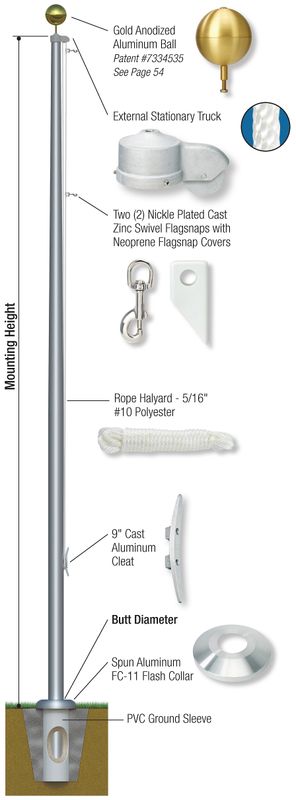

Standard Features Include:

• Patented, Heavy-Duty Gold Anodized Aluminum Ball

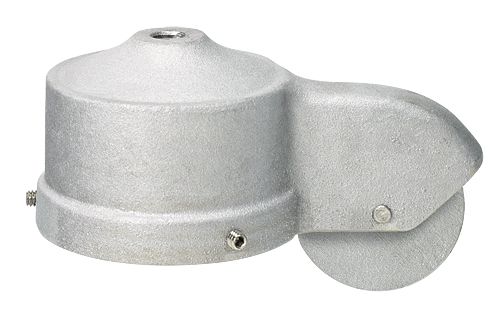

• Cast Aluminum Single Stationary Truck Assembly with Aluminum Pulley

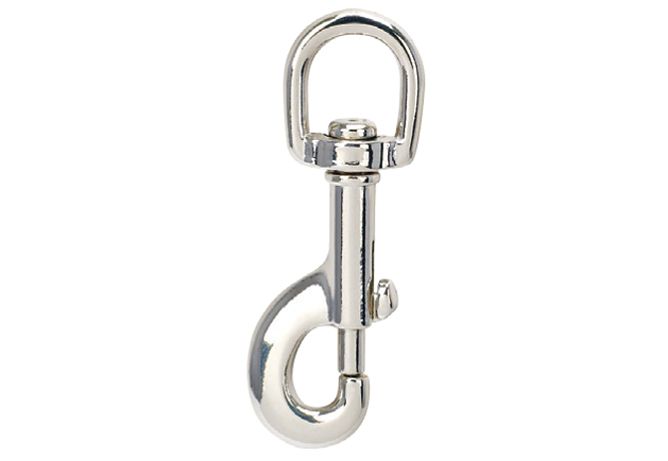

• Complete External Halyard Assembly - Rope Halyard - 5/16" #10 polyester - Two (2) Nickel Plated Cast Zinc Swivel Flagsnaps
• 9" Cast Aluminum Cleat
• Spun Aluminum FC-11 Flash Collar

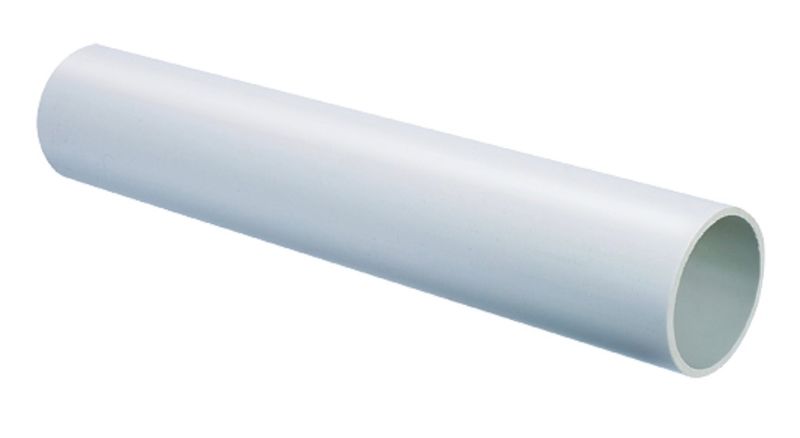

• PVC Ground Sleeve

Optional Upgrades:

• Color and Finish

Satin - Standard -	Clear Anodized	Black Anodized	Dark Bronze Anodized
Bronzetone Powdercoat	Black Powdercoat	White Powdercoat	Clear Powdercoat

• Shaft Thickness

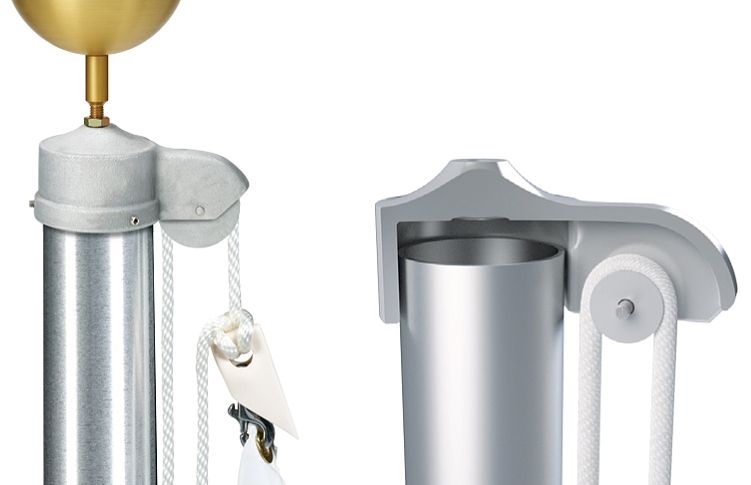

• Cap style revolving Truck

This popular upgrade is very functional and relatively inexpensive. A rotating truck tracks with the wind and keeps your flag from wrapping around the pole. Cast Aluninum Single Aluminum Pulley on a Stainless Steel Axle. Attaches with three (3) Stainless Steel Set Screws Upper and Lower Stainless Steel Ball Bearing Assemblies. Rotating Truck Option will be Provided in Same Finish and Color as Your Flagpole.

• Cleat Cover Box

Cleat Cover Boxes, also known as Halyard Cover Assemblies or Halyard Security Kits Provide Tamper Resistant Security for External Halyard Flagpoles.	Cleat Cover Box with Padlock	Cleat Cover Box with Cylinder Lock
Available in Both Cylinder Lock and Padlock designs containing a sanded finish that is complementary to the Flagpole Color and Finish. These Boxes are Constructed of Heavy Cast Aluminum with Stainless Steel Hinges. Keys are Included for the Cylinder Lock Models (Padlock by Others)
Five foot tall Halyard cover Channel (not shown) Keeps your Halyard Lines Safe and Secure inside a heavy Cast Aluminum Channel. These Channels Extend up and Out of Reach on The Flagpole.

• Collar Options

Our Offering of Heavy-Duty Cast Aluminum Collars Provides Project Owners the Strongest and Most Durable Collar Offered in the Industry Today. Cast from Aluminum Alloy, These 1/4" Thick Cast Collars are Designed to Withstand the Harshest Environments.

• Base Mount Options

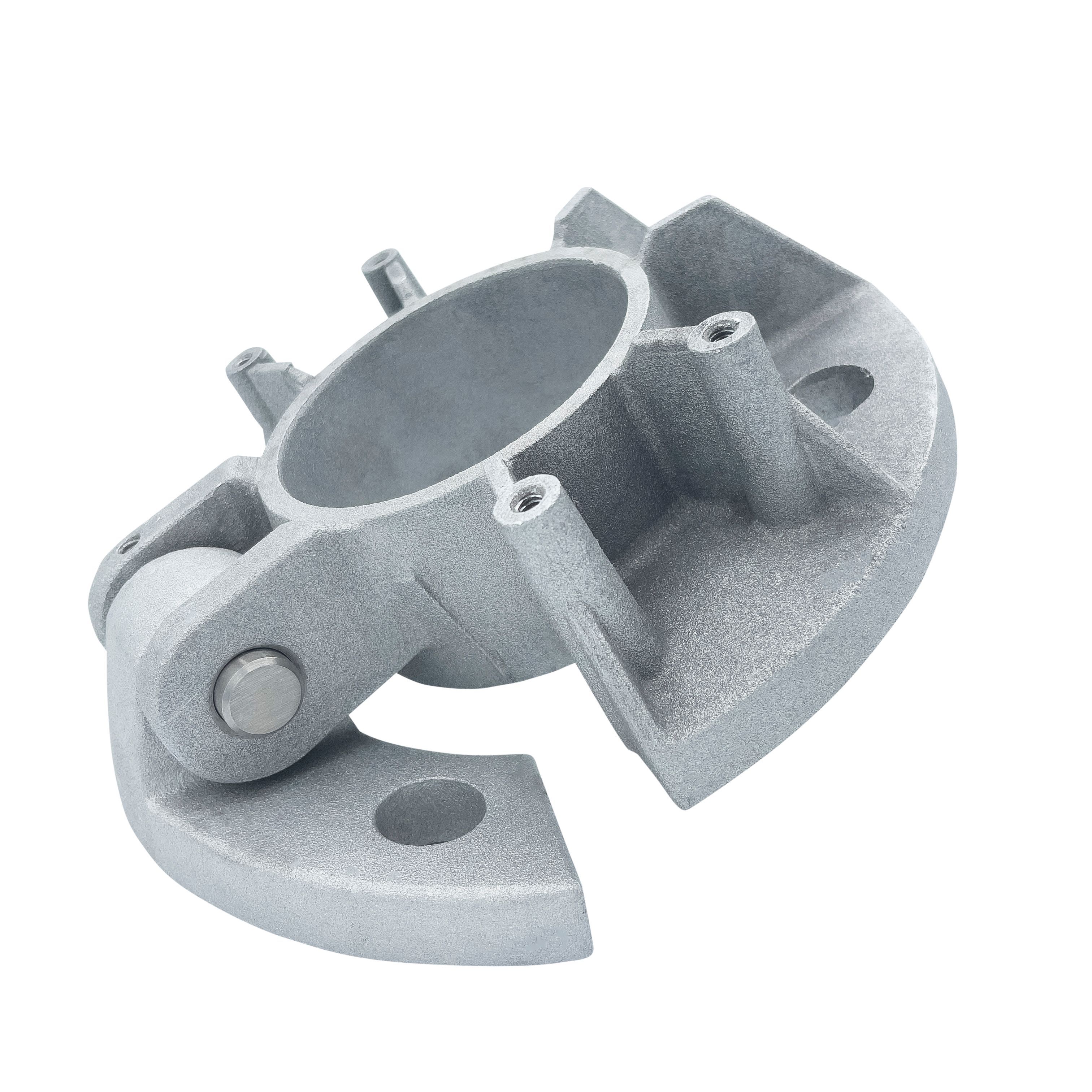

Hinge Base Mount to be used on One Piece External Halyard Flagpoles up to 25' only. 4" and 5" Butt Diameters Only.

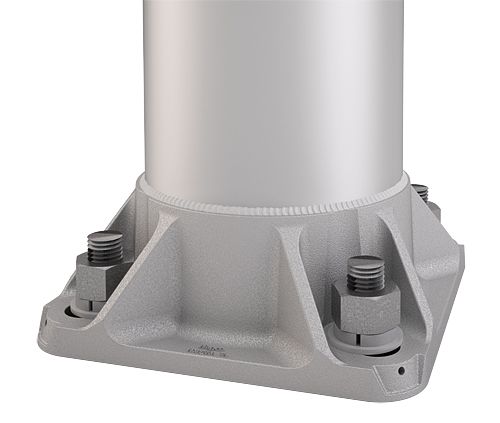

Shoe Bsae Option All 20' to 80' Concord Flagpoles listed on our website with Butt Diameters of 4" or more can be provided with a shoe base option in lieu of the Standard Foundation Sleeve and Lightning Ground Spike. Shoe Bases are welded to the flagpole shaft and heat treated to a T-6 Temper at the factory prior to shipping. For more information and pictuers go here.
