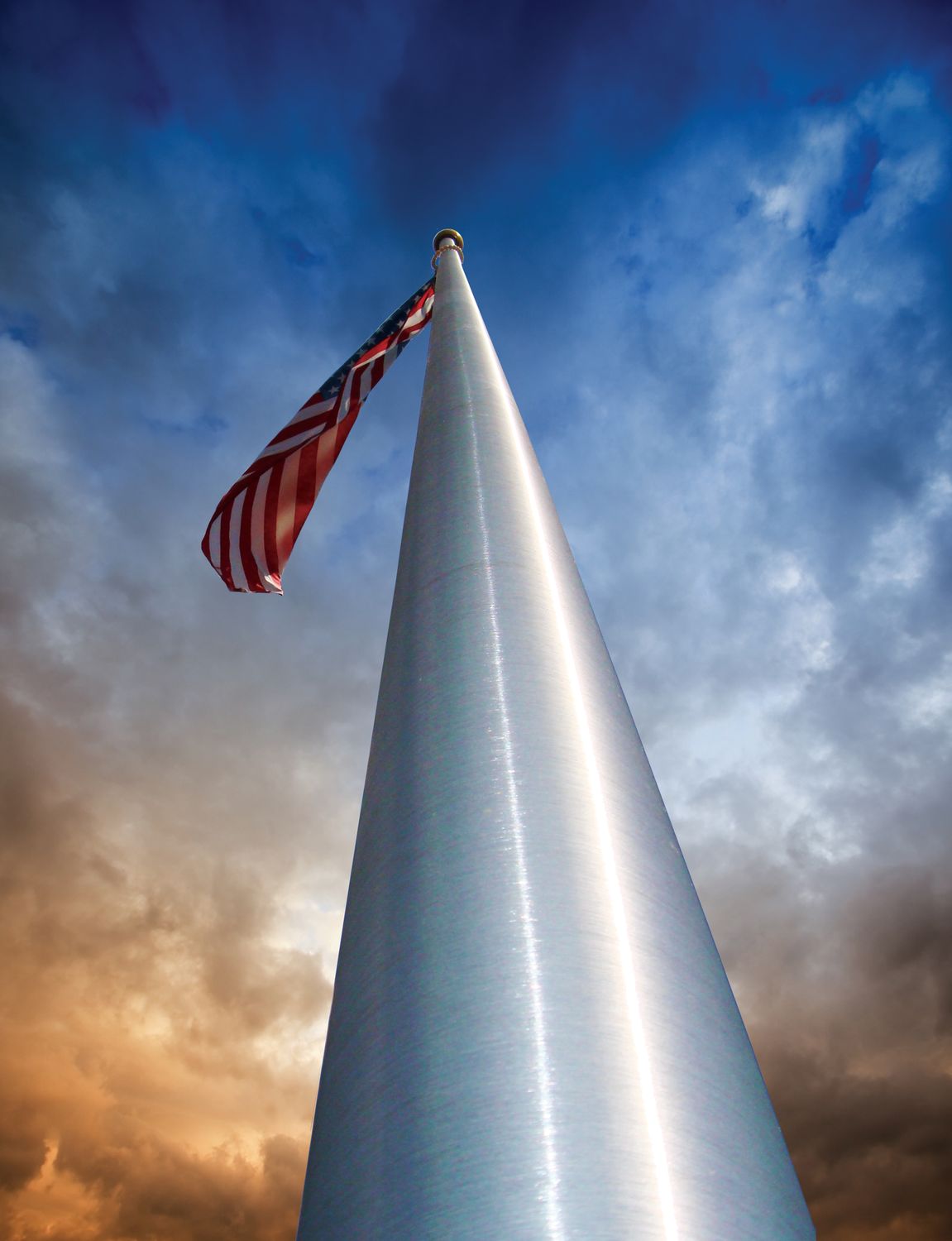

Xtreme Series - XESR 70 foot, Xtremme External Single Revolving - Rope Halyard Flagpole. Many options available.

The Xtreme Series from Concord American Flagpole provides flagpole owners with increased wind Speed Ratings necessary in Costal, high wind, oversized and multiple flag applications. Years of Engineering, R&D and Manufacturing experience have merged to create the strongest, most efficient increased wind speed flagpoles, combining superior strength with the highest quality Heavy Duty Component Parts in the industry...External Single Revolving Trucks with Dual SEALED Bearing Assemblies and Stainless Steel Spindle, 3/8" Polyester Halyard, Stainless Steel Flagsnaps and Cast Aluiminum Collars.

This 70' pole is designed to fly a 12x18 flag, and is available only in 12 inch Butt Diameter. This configuration is made with .375" (3/8") thickness aluminum, and is only available in 3 sections. Respective windage for this configuration is 139/181.

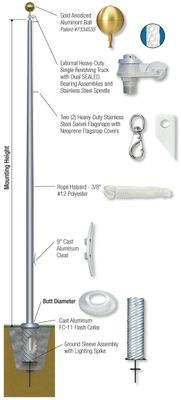

Standard Features Include:

• Patented, Heavy-Duty Gold Anodized Aluminum Ball with 5/8" stem
• Heavy-Duty Cast Aluminum Revolving Truck with Dual SEALED Stainless Steel Bearing Assemblies, Aluminum Pulley and Stainless Steel Spindle.

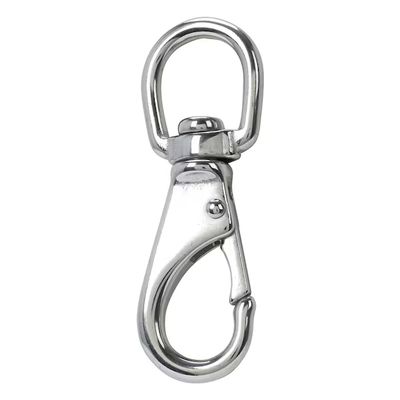

• Complete External Halyard Assembly - Rope Halyard - Heavy-Duty 3/8" #12 Polyester - Two (2) Heavy-Duty 4 1/4" Stainless Swivel Flagsnaps - Two (2) Neoprene Flagsnap Covers.
• 9" Cast Aluminum Cleat
• Heavy-Duty Cast Aluminum FC-11 Flash Collar
• Galvanized 16-Gauge Corrugated Steel Ground Sleeve with Steel Grounding Spike.

Optional Upgrades:

• Color and Finish

Satin - Standard -	Clear Anodized	Black Anodized	Dark Bronze Anodized
Bronzetone Powder Coat	Black Powder Coat	White Powder Coat	Clear Powder Coat

• Shaft Thickness

• Truck Options

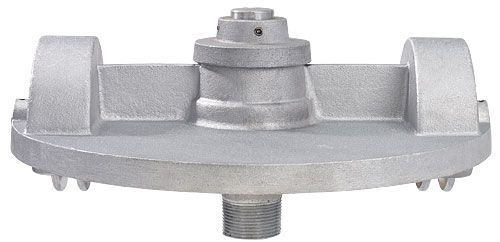

8", 10" or 12" Diameter Ball/Truck Replaces Standard Truck and Ball Combination Cast Aluminum Construction Goldtone Powder Coated Finish Aluminum Pulley on Stainless Steel Axle SEALED Upper and Lower Stainless Steel Ball Bearing Assemblies. 1-1/4" NPT Spindle Factory Attached Eagles Available - Contact us for size and pricing options.
Double Revolving Truck Heavyweight Cast Aluminum Body and Components Double Aluminum Pulleys on Stainless Steel Axles SEALED Upper and Lower Stainless Steel Ball Bearing Assemblies. 1-1/4" NPT Spindle 1/2" - 13NC Top Drilling (5/8" 11NC Availavble) Recommender Halyard Diameter - 3/8" Includes Extra Cleat, Halyard and Flagsnaps.

• Cleat Cover Box

Cleat Cover Boxes, also known as Halyard Cover Assemblies or Halyard Security Kits Provide Tamper Resistant Security for External Halyard Flagpoles.	Cleat Cover Box with Padlock	Cleat Cover Box with Cylinder Lock
Available in Both Cylinder Lock and Padlock designs containing a sanded finish that is complementary to the Flagpole Color and Finish. These Boxes are Constructed of Heavy Cast Aluminum with Stainless Steel Hinges. Keys are Included for the Cylinder Lock Models (Padlock by Others)
Five foot tall Halyard cover Channel (not shown) Keeps your Halyard Lines Safe and Secure inside a heavy Cast Aluminum Channel. These Channels Extend up and Out of Reach on The Flagpole.

• Mount Option

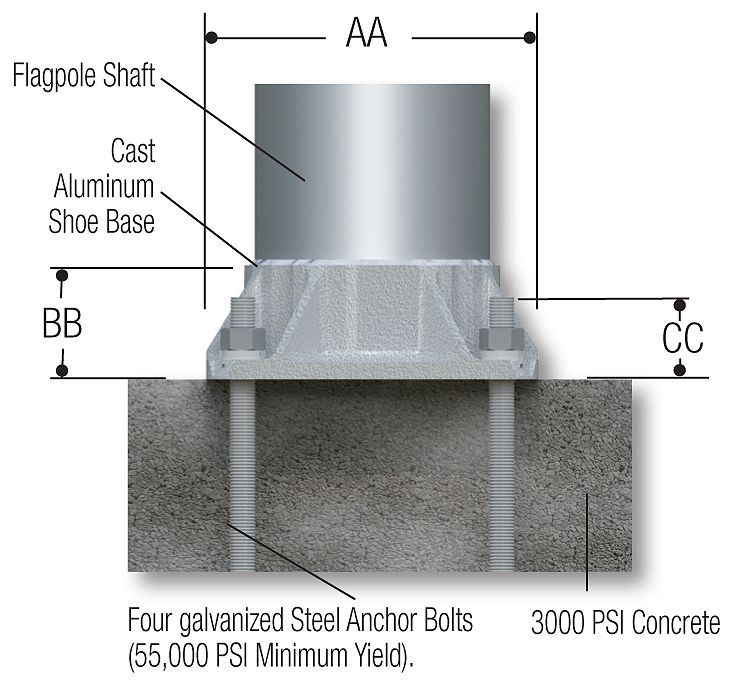

Shoe Base is Welded to the Flagpole Shaft at the Factory then Heat Treated to T-6 Temper. for more info go here.
